H2 ADJUSTABLE CHOKE RELACEMENT PARTS
FOR CAMERON H2 CHOKES

USA-BOPS provides replacement parts to fit Cameron H2 adjustable chokes. USA-BOPS offers these replacements parts in standard trim and super trim.

The following parts breakdown is for the more common 1" orifice, 2M through 10M psi. USA-BOPS also has parts available for:

  • 1" Orifice, 15M psi.
  • 2" Orifice, 2M through 5M psi.
  • 2" Orifice, 10M psi.
  • 3" Orifice, 2M through 5M psi.

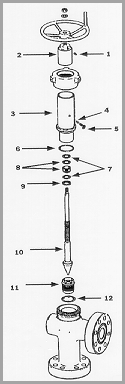

1" ORIFICE-2,000 THROUGH 10,000 PSI CHOKE

ITEM

DESCRIPTION

STANDARD
TRIM

SUPER
TRIM
1
 Set Screw
10019-13
10019-13
2
 Indicator
19692
19692
3
 Bonnet
19691-01
19691-01
4
 Plug
19690
19690
5
 Thumb Screw
10019-06
10019-06
6
 O'Ring
18491-29
18491-85
7
 Junk Ring
21817-11
21817-12
8
 J-Packing
22176-01
22176-06
9
 Retainer Ring
15345-07
15345-07
10
 Needle Stem
19688-01
663037-01
11
 Seat
38132
671635
12
 Gasket
14181-01
660138-01

NOTE: USA-BOPS' Super Trim Needle Stem is stainless steel with tungston carbide tip.


Contact us for additional literature on other size choke parts availability.
