USA-BOPS provides replacement seals to fit Shaffer Annular Type Blowout Preventers both as individual seals and as complete seal kits.

USA-BOPS seals are lip type seals and are made to seal against moving parts, such as the piston, as it raises and lowers in the BOP body.

USA-BOPS seal kits do not come with wear band material since it does not require replacing each time a blowout preventer is repaired. However, wear band material is available to complement seal kits upon request.

Wear bands prolong the life of the piston as it wears against the cylinder. It also contributes to the life expectancy of the replacement seals.

USA-BOPS also provides replacement packing units and other blowout preventer products for Shaffer Annular and Ram Type preventers.

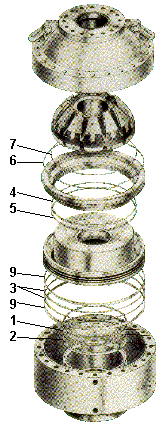

SEAL KITS FOR SHAFFER ANNULAR BOP
ITEM	DESCRIPTION	QTY.	7-1/16 x 3M	7-1/16 x 5M	7-1/16 x 10M	9 x 3M	9 x 5M
1	Upper I.D. Piston Seal	1	31105	31105	31102	31110	31110
2	Lower I.D. Piston Seal	1	31000	31000	31102	31002	31002
3	O.D. Piston Seal	2	30780	30780	30765	31012	30765
4	Upper I.D. Adapter Seal	1	31104	31104	31100	31109	31109
5	Lower I.D. Adapter Seal	1	31102	31002	31100	31037	31037
6	O.D. Adapter Seal	1	30408	30408	30773	30784	31126
7	Top Adapter Seal	1	30244	30405	31035	31145	31036
8	Complete Seal Kit	1	155078	155079	155050	155077	155076
Contact us for information regarding the replacement of the wear band material (pt#150613) for both the piston and the lower housing for this type of preventer.

SEAL KITS FOR SHAFFER ANNULAR BOP
ITEM	DESCRIPTION	QTY.	11 x 3M	11 x 5M	11 x 5M Lt. Wt.
1	Upper I.D. Piston Seal	1	31099	31113	31113
2	Lower I.D. Piston Seal	1	31101	31152	30780
3	O.D. Piston Seal	2	30765	31018	31018
4	Upper I.D. Adapter Seal	1	31098	31114	31114
5	Lower I.D. Adapter Seal	1	30761	30781	30781
6	O.D. Adapter Seal	1	30760	30783	30783
7	Top Adapter Seal	1	31095	31115	31115
8	Complete Seal Kit	1	155075	155030	155030
Contact us for information regarding the replacement of the wear band material (pt#150613) for both the piston and the lower housing for this type of preventer.

MELCO SEAL KITS FOR SHAFFER ANNULLAR BOP
ITEM	DESCRIPTION	QTY.	13-5/8 x 3M	13-5/8 x 5M	13-5/8 x 5M Lt.Wt.	21-1/4 x 2M	21-1/4 x 3M Lt.Wt.
1	Upper I.D. Piston Seal	1	31111	31097	31111	31108	31108
2	Lower I.D. Piston Seal	1	30780	30770	30780	30761	30761
3	O.D. Piston Seal	2	30782	31029	30782	30767	30767
4	Upper I.D. Adapter Seal	1	31112	31096	31112	31107	31107
5	Lower I.D. Adapter Seal	1	30771	30771	30771	31018	31018
6	O.D. Adapter Seal	1	31011	30772	31011	31019	31019
7	Top Adapter Seal	1	30773	31094	30773	31027	31027
8	Complete Seal Kit	1	155073	155070	155073	155067	155067
Contact us for information regarding the replacement of the wear band material (pt#150613) for both the piston and the lower housing for this type of preventer.
