PISTONS, CONNECTING RODS, LOCKING SCRERWS, and CYLINDERS
FOR CAMERON TYPE QRC, SPACE SAVER AND TYPE U BLOWOUT PREVENTERS

USA-BOPS provides all the metal parts to fit a Cameron SS and Type U blowout preventer.


USA-BOPS stocks a large inventory of metal replacement parts for immediate distribution.

Some USA-BOPS parts numbers may not coincide with Cameron's current part number. Contact us for crossover.

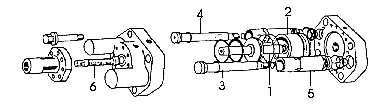

CAMERON TYPE U BLOWOUT PREVENTER
1. Operating Piston
2. Operating Cylinder
3. Ram Change Piston-Open
4. Ram Change Piston-Close
5. Ram Change Cylinder
6. Locking Screw

SERIES OPERATING
PISTON*		 OPERATING
CYLINDER		 RAM CHANGE
PISTON-OPEN		 RAM CHANGE
PISTON-CLOSE		 RAM CHANGE
CYLINDER		 LOCKING
SCREW
7-1/16 x 3/5M
30320 (o/s)
667940
30274-2
30324
30325
30273-2
30326
7-1/16 x 10/15M
30320(o/s)
667940
30274-2
30324
30325
30273-2
30326
11 x 3/5/10M
30364(o/s)
673178
30274-3
30362
30363
30273-3
30365
12 x 3M
30311(o/s)
679816
30274-1
30310
30309
30273-1
30307
13-5/8 x 5M
30311(o/s)
679816
30274-1
30310
30309
30273-1
30307
13-5/8 x 10/15M
31240(o/s)
678512
30274-1
31239
31238
30273-1
30307
16-3/4 x 5M
38846(o/s)
689562
30274-6
38847
30848
30273-6
38901
20 x 2/3M
30847(o/s)
690058
30274-4
30848
30849
30273-4
30846
*o/s Denotes Old Style Operating Piston

Back to Top

CAMERON TYPE SS BLOWOUT PREVENTER
1. Operating Piston
2. Ram Change Piston-Open
3. Ram Change Piston-Close
4. Locking Screw

SERIES OPERATING PISTON RAM CHANGE
PISTON-OPEN		 RAM CHANGE
PISTON-CLOSE		 LOCKING
SCREW
6 x 3/5M
16246
16247
16248
19226
8 x 3/5M
15966
15964
16118
19224
11 x 3/5M
15966
15964
16118
19224
12 x 3M
16147
16148
16150
19225
14 x 5M
16147
16148
16150
19225

Back to Top

CAMERON is a registered trademark of The Cameron Company.
Back to Cameron Type U Products
